1
2
3
4
1

20A Power Supply

2

120VAC Line voltage input

3

Output terminals

4

Switch inputs

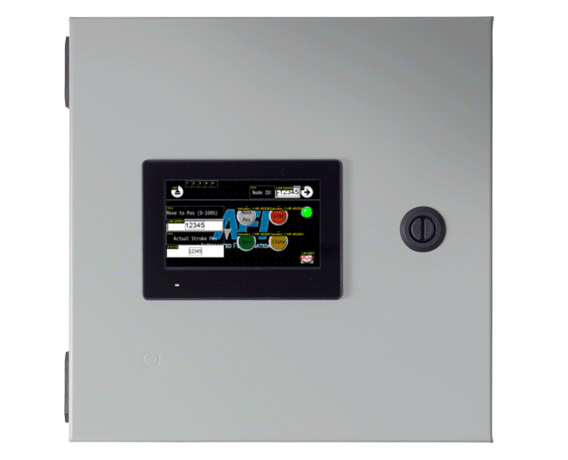

CoreControl
  • (4) channel
  • 12 actuators maximum
  • BACnet option available
  • Fire alarm override option available
MC Series
  • Up to (5) channels
  • Up to 20 actuators maximum
  • DIN rail mounted power supplies
  • Steel enclosure with lockable cover
RS Series
  • Up to (4) channels
  • Up to 16 actuators maximum
  • DIN rail mounted power supplies
  • Steel enclosure with lockable cover

GVL 8304-K-UL
  • Single channel self-contained, installation-ready unit
  • Inputs for Wind and Rain sensors (See Accessories)
GVL 8408-M
  • Powered control panel for 24VDC actuators
  • Controls 4 groups, 8A Max total
  • Inputs for Wind and Rain sensors (See Accessories)
