AFI Shutterbox Rain Sensor

For AFI Sentry Series Controls

Rain Sensor for the AFI Sentry Series Motor and Control Kit.

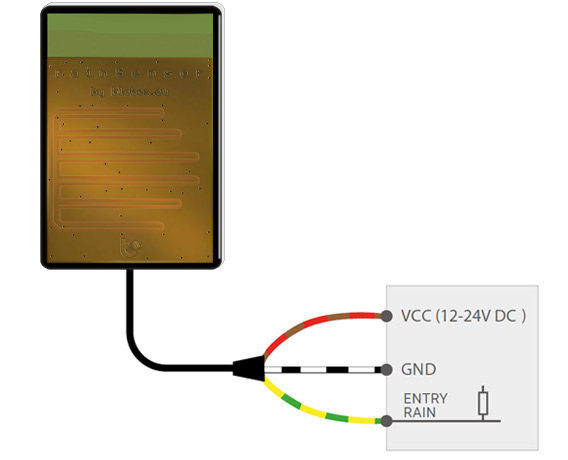

  • Power Supply: 12-24V DC
  • Maximum load: 6W
  • Number of outputs: 1
  • Type of outputs: Open drain, ground control
  • Type of measurement: Rainfall detection (Start and End)
  • Sensor heating: Automatic energy saving function
  • Holes in the mounting bracket or a self-adhesive element (tape). Mounting bracket adapted to rotate the direction of the cable exit. Horizontal installation in a place exposed to rain.
  • Protection level: IP65
  • Communication standard: 5Wifi, compatible with µWiFi, 802.11g
  • Mode: Direct connection (as Access Point), WiFi connection via a standard router, connection with access from any location in the world.

800.677.0228

Contact Us
  • Applications

    For AFI Sentry Series Controls for casement windows equipped with Truth casement operators.

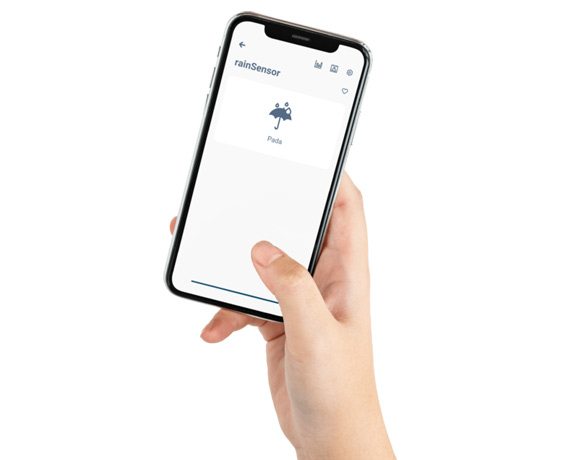

    Once powered, the rain sensor communicates wirelessly with the ShutterBox to issue closed command during rain events.
