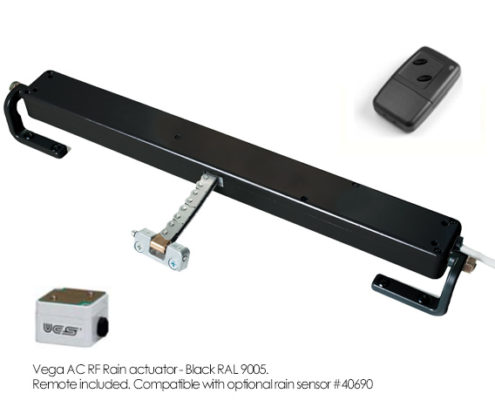

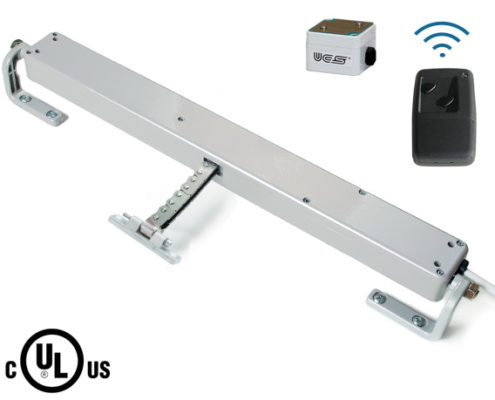

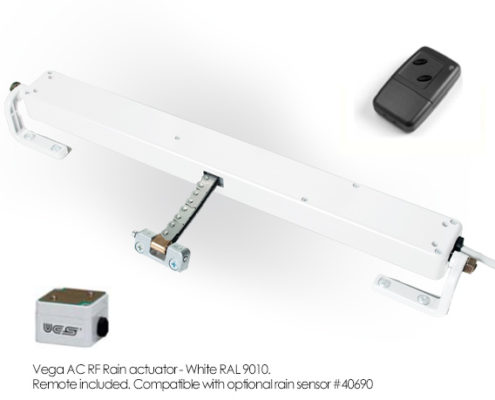

Vega AC RF Rain Chain Actuator

Centered chain orientation actuator

  • Ideal for smart buildings; integrates with building and home automation systems
  • Multiple actuators may be linked for simultaneous operation of multiple windows
  • Push/Pull Force up to 250 N (55 lb)
  • Opening distance up to 300mm (12 in)
  • UL Listed
Downloads

800.677.0228

Contact Us

  • Applications

    • For automation of awning or hopper windows, skylights, or curtain wall vents.
    • For commercial, institutional and residential projects, including schools, universities, municipal buildings, offices, gymnasiums, homes, condos, and more.
    • Natural Ventilation systems, such as operable windows and skylights, save energy and lower operating costs by reducing air conditioning and heating use.
    • LEED credits for green building projects can be earned under Indoor Environmental Quality for Natural Ventilation, Daylighting and Views.
    • Smoke Evacuation systems reduce smoke, heat and casualties during a fire; AFI actuators are SHE certified.

    gall-m-lamissioncollege-large

  • Features & Benefits

    spacer

    Opening: Up to 300 mm (12”) chain stroke
    Force: 55 lbs. (250 N) push/pull
    Speed: approximately 9 mm (0.354 inch) per second
    Safety Marks: UL Listed, CE rated
    Use with: SPDT momentary contact (3 leads + ground)
    DC voltage: 24 Vdc (-20% / +25%) low voltage
    Amp rating: 0.3 amps at 120VAC, 0.15 amps at 230VAC
    Power cable: UL cable 1.5 meter included, white color
    Dimensions: 45 x 32 x 450 mm (1-3/4” H x 1-1/4” W x 17-3/4” L)
    Mounting: Mounting brackets available separately
    Control options: RF remote control (included)
    Compatible with optional rain sensor #40450K

  • Specifications

    spacer

    Chain Stroke Push Force Pull Force Chain Speed Nom. Current Draw
    300mm 250N 250N 9mm/Sec. 0.3A at 120VAC
    0.15A at 230VAC

  • Options

    • AFI Vega Actuators are available in standard grey, white, or black color
    • Other RAL colors on request, see accessory data sheet
    • Compatible with optional rain sensor #40450K
    • Mounting brackets available separately

  • Warranty

    • Tested to 10,000 cycles.
    • 2-year manufacturer’s warranty; requires use according to Installation Guide recommendations.
